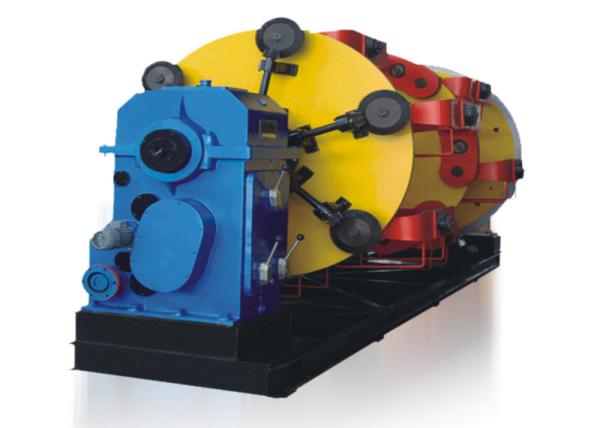

630mm 6+12+18 Planetary Type Wire And Cable Stranding Copper Bunching Machine Back-Twisting

  • 1
  • 2

Brand Name : yuyang

Model Number : 630-1+6+12

Certification : CE, CCC, CE, ISO

Place of Origin : dongguan,china

MOQ : 1 set

Price : 100,000$-150,000$

Payment Terms : T/T, L/C

Supply Ability : 50 sets per year

Delivery Time : 90 days after advance payment

Packaging Details : 1 set 40 teet container

main power : 75kw

motor : siemens

pay off : 630mm

inverter : yaskawa

take up : 2500mm

copper : 35 50 70 95 square mm

finished OD : 50mm

copper details : 1+6+12

plc : siemens

Stranding pitch : 60-1250mm

speed : 30m/min

Central height : 1000mm

Contact Now

The machine is mainly used for stranding bare conductors and insulated wires up to 30 strands.

Main technical parameters:

1.1 Single wire Dia. Copper: Φ1.5-Φ5.0mm / Insulated wire: Φ2-Φ7mm

1.2 Max stranded Dia. Ф50mm

1.3 Stranding pitch range 68-1250mm

1.4 Max cage rotate speed 12B: 70RPM / 18B:55RPM

1.5 Max line speed 30m/min

1.6 Capstan wheel diameter Ф1500mm

1.7 Central pay-off bobbin Ф500mm

1.8 Pay-off bobbin in stranding cage Ф500mm

1.9 Take-up drum Ф1000mm-Ф2000mm

1.10 Main motor power 55KW,380V,50Hz,AC motor

1.11 Central height of machine 1000mm

Components:

1.1 Ф1600mm column type pay off 1 set

  • Ф500/12+18 bobbins cages 1 set

1.3 Wire-stranded die holder 2 sets

1.4 Meter counter 1 pc

1.5 Ф1500mm double capstan wheels 1 set

1.6 Ф2000mm column type take-up and traverse 1 set

1.7 Transmission system 1 set

1.8 Electric control system 1 set

1.9 Safe fence 1 set

Main parts brand:

Main motor:SIEMENS Beide

Inverter:YASKAWA

Main low voltage electrical Components:Chinese famous brand

Main bearing:Chinese famous brand

Pneumatic elements:Chinese famous brand
